Specification
| Material | Polyetersulfone |
|---|---|
| Application | Water, Food and Beverage, Pharmacy, Semiconductor |
| Type | Membrane Filter Cartridge, Pleated Filter Cartridges |
| Cartridge length | 508mm (20”), 762mm (30”), 1016mm (40”) |
| Micron | 0.1, 0.2, 0.45, 0.5, 0.65, 0.8, 1 |
| Cartridge treatment | Standard - Cleand and Flushed with pyrogen-free water. , Rinsed - Ultra-clean, pulse flushed to give a system resistivity of 18MΩ.cm |
| Seals | Ethylene Propylene, Viton, Nitrile, FEP Encapsulate Viton, FEP Encapsulate Silicon, Silicone, EPDM |
| O-ring | EPDM, Viton, Silicone, FEP/VITON, FEP/SILICONE |
| Filter media | Polyethersulphone |
BorsoPES-JM

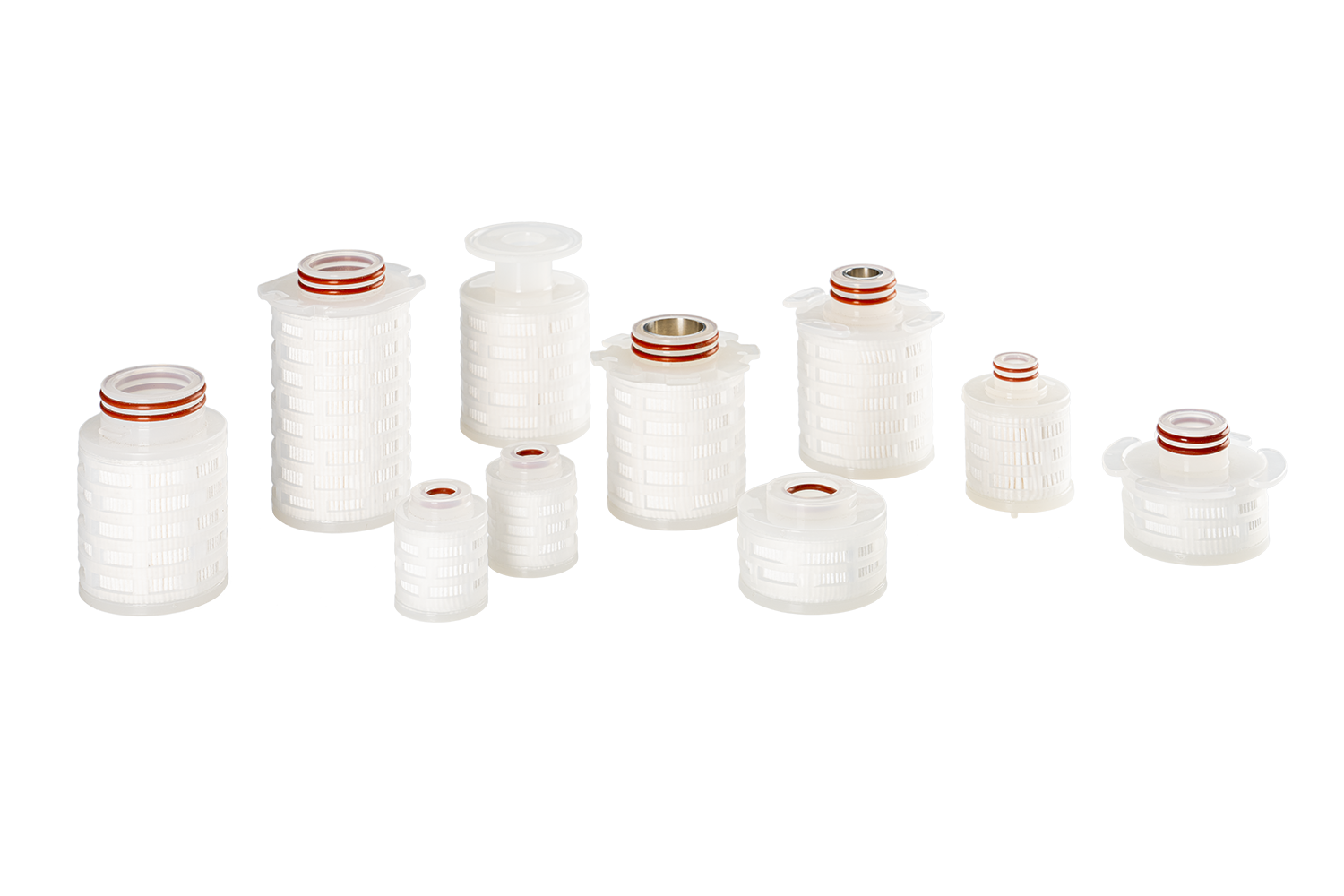

A full range of junior-style hydrophobic PTFE membrane filter cartridges. The hydrophobic membrane makes the filter ideally suited for the sterile filtration of gases and air.
Click here to contact us.
Description
BorsoPTFE microfiltration elements are specifically designed for use in corrosive gases and liquids.A naturally strong hydrophobic PTFE membrane makes this the cartridge of your choice when high resistance to aggressive liquids is required.
BorsoPTFE Membrane Filter Candles are 100% integrity tested during production using the forward flow diffusion test.
Materials of Manufacture
Filter media: ePTFE
Membrane support: Polypropylene
Irrigation mesh (support): Polypropylene
Drainage Layer: Polypropylene
Inner core: 316L Stainless Steel
End fittings: Polypropylene
Outer Support: Polypropylene
Support ring: Stainless steel
Sealing: Fusion bonding
